Ultrasonic coating thickness gauge/ measuring nonmetallic coating/ Measuring range:1~1250um

FOB Reference Price:Get Latest Price
US $1-200 / Sets | 200 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
XINTEST
Model Number:
HT-128
Size:
112*51*28mm
Weight:
80g
Display Accuracy:
0.01mm
Color:
white+ black
Accuracy:
±3%H+2um
Measuring Range:
0 ~ 1300um
Coating Material:
nonmetal
Power Supply:
2*1.5V AAA Batteries
OEM&ODM:
Available
Supply Ability
Supply Ability:
100000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Color box or as customer's requirements.
Port
SHENZHEN
Lead Time :
25-30
Product Details
Specification
Measurement mode
single measurement and continuous measurement
Unit
um, mm
Range
0~1300um
Resolution
1um(0~999um); 0.01mm(≥1000um)
Precision
±3% + 2um(0~1300um)
Automatic power off
3min (No key operation)
Power supply
2 x 1.5V AAA Battery (Not included)
Operating temperature
0~45℃, 0~90%RH (no condensation and no strong magnetic field)
Storage temperature
-10~50℃, 0~90%RH (no condensation)
Substrate thickness
>0.5mm
Curvature radius of concave surface
>1.5mm
Curvature radius of concave surface
>25mm
Measurement area diameter
>6mm
Thickness gauge size
112 x 51 x 27mm
Case size
250 x 190 x 63mm
Package size
265 x 210 x 65mm
Product Description

Accurate, fast and easy use with powerful function.
Automatic Shutdown: 3minutes without any operation.

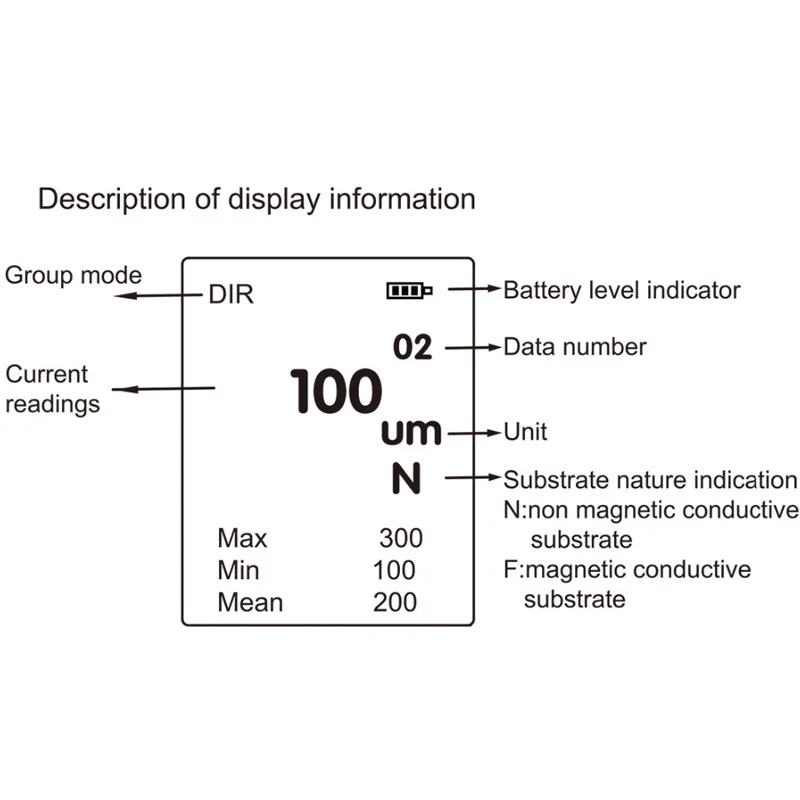

Easy-to-read backlight LCD display and USB Interface.
With portable carrying rope and portable case, it's very easy and convenient.
Comes with iron base and non-iron (aluminum) base.

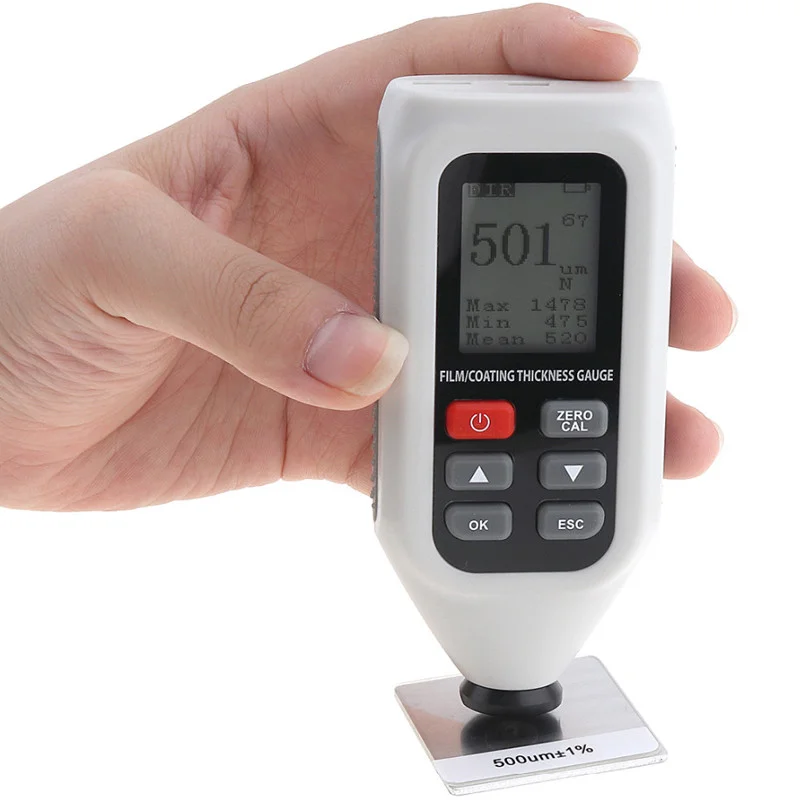

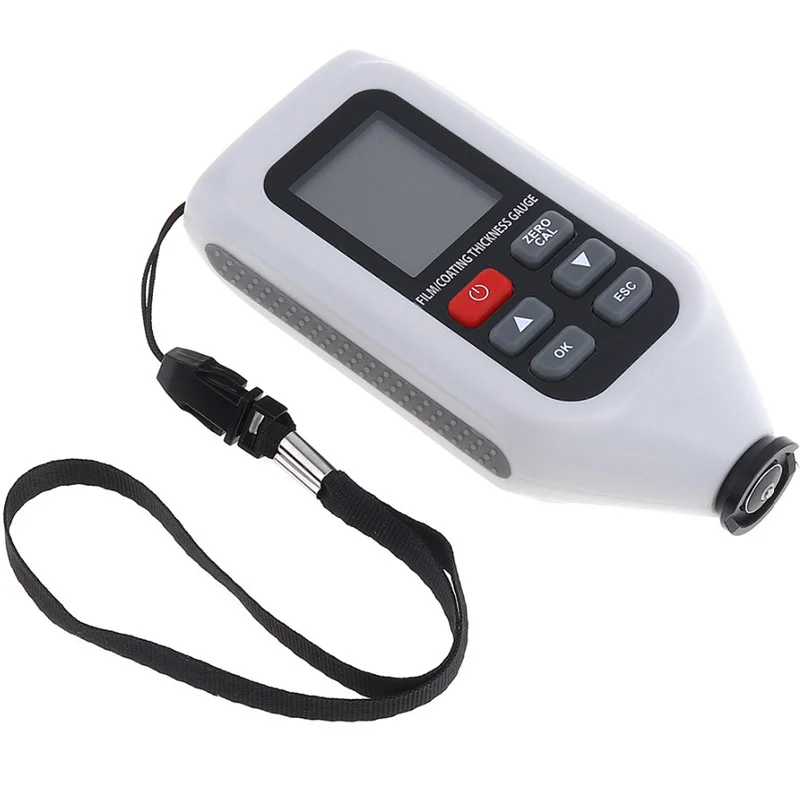

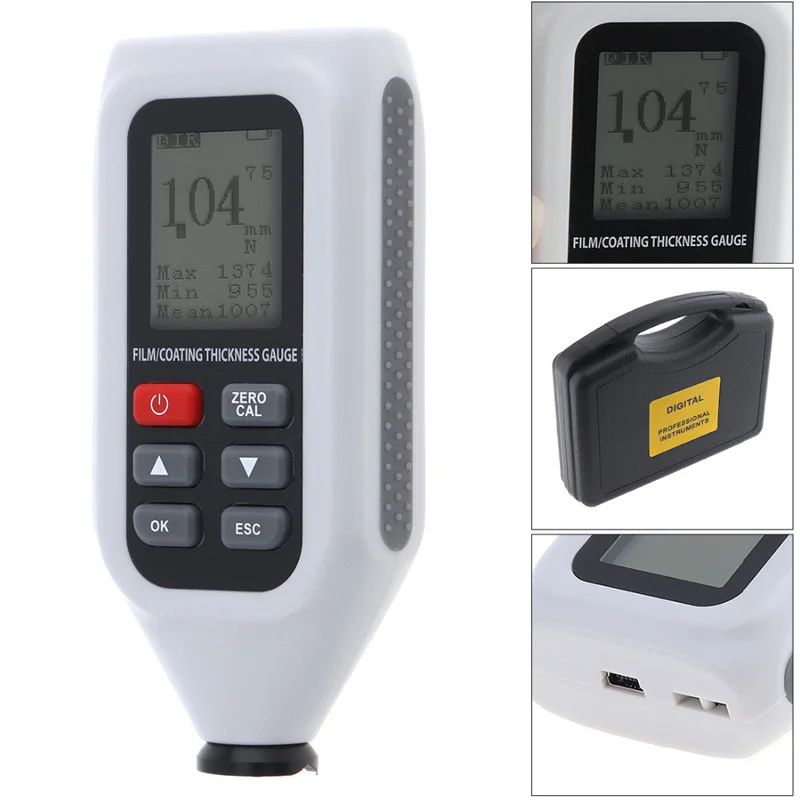

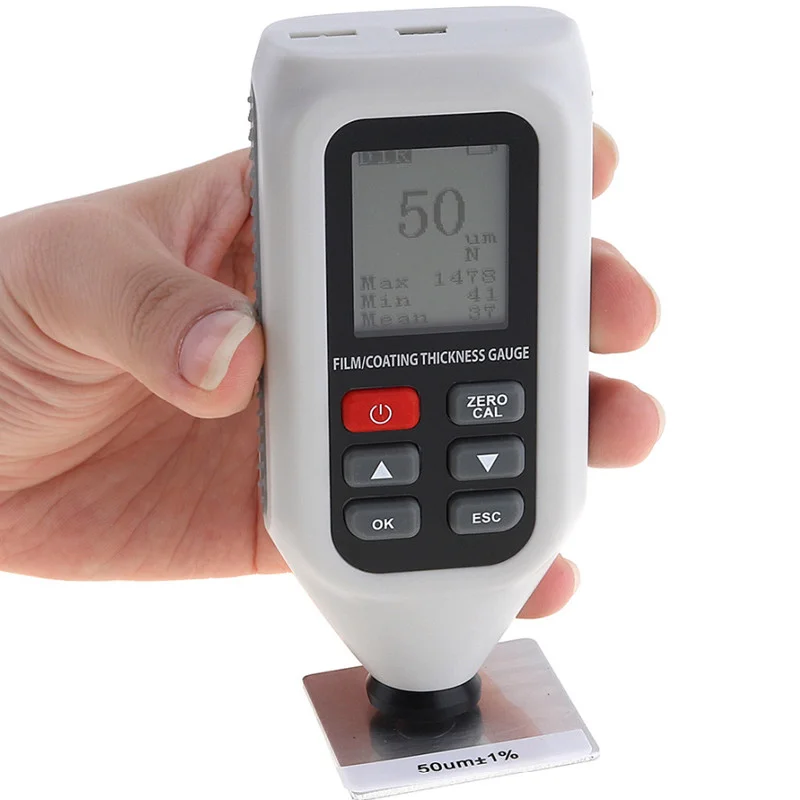

Product Pictures
Related Products

Products Name with link

Products Name with link


Products Name with link

Our Company

Dongguan Xintai Instrument (www.hytechcn.com.cn) is located in Dongguan ,GuangDong , company was established in June 2009. And professional manufacturer of instruments, such as IR thermometers, Anemometers, Sound Level Meters, Humidity and Temperature Meters, Carbon monoxide meter,Microwave leakage detector etc.
We provide one-stop services, from conceptual design to prototyping to mass production. Our rich experience in design and manufacturing technologies enable us to meet our customers' ODM and OEM requirements.and have a good reputation in this field.
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of products are passed CE and ROHS, and strictly inspected before shipment. Perfect after-sales service win the customer's satisfaction.

Packing & Delivery

Packing

Packing Detail:HT-128 Thickness gauge for coating and clad layer is packed Color Box or Customize

Delivery

Delivery Detail:Shipped in 25~30 work days after payment

FAQ

1.Are you manufacturer or trader?
A:We are manufacturer.Our factory located in Dongguan City,warmly welcome to visit our factory.
2.Can you accept paypal?
A:Yes,we accept paypal.
3.Can I buy 1pc for testing?
A:Yes,we welcome sample order to test the quality.
4.What is the payment terms?
A:Deposit 30% to production,balance 70% pay before shipment.
5.Do you have guarantee?
A:Yes,we all products have one year guarantee.
